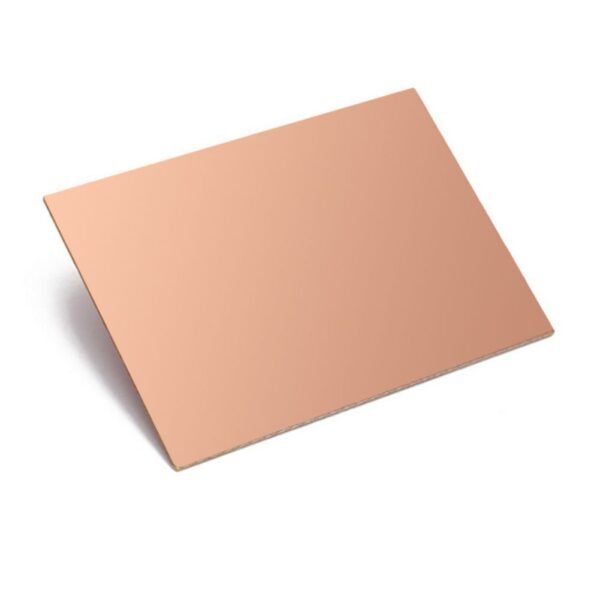

FR4 Copper Clad Laminate Middle TG
Features
◆UV Blocking and AOI (automatic optical inspection) compatible
◆Excellent dimensional stability
◆Excellent heat resistance and mechanical properties
Applications
◆Computer and peripheral
◆Automotive electronics
◆Communication equipment
◆Instrument
Standard size
◆Thickness: 0.6-1.6mm
◆Copper foil: 12um, 15um,18um, 25um,35um,70um
◆Sheet Size: 37×49”,41×49”,43×49”
| Item | Test Condition | Unit | Specification Value | Typical Value |
| TG | DSC | °C | 130±5 | 132 |
| Peel Strength | 288°C,10S | N/mm | ≥1.05 | 1.42 |
| Thermal stress | 288°C,solder dip | S | >10 | 60 s No delamination |
| Flexural Strength | Warp LW | N/mm² | ≥415 | 485 |
| Fill LW | ≥345 | 401 | ||
| Flammability | E24/125 | — | UL94 V-0 | V-0 |
| Surface Resistivity | After moisture | MΩ | ≥1.0X10⁴ | 5.25×10⁷ |
| Volume Resistivity | After moisture | MΩ · cm | ≥1.0×10⁶ | 5.10×10⁸ |
| Dielectric Constant | 1MHZ C24/23/50 | — | ≤5.4 | 5.1 |
| Loss Tangent | 1MHZ C24/23/50 | — | ≤0.035 | 0.015 |
| Arc Resistance | D48/50 + D0.5/23 | S | ≥60 | 120 |
| Dielectric Breakdown | D48/50 + D0.5/23 | KV | ≥40 | 42 |
| Moisture Absorption | D24/23 | % | ≤0.5 | 0.25 |
