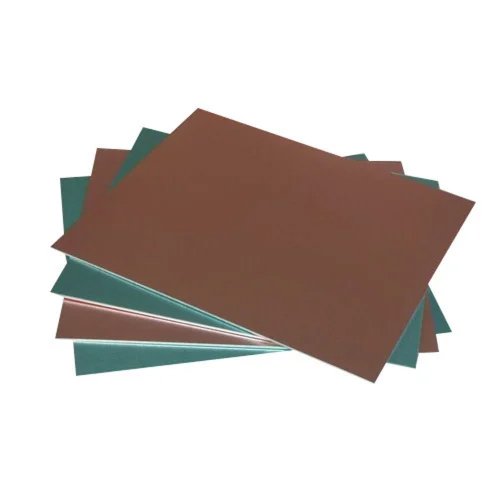

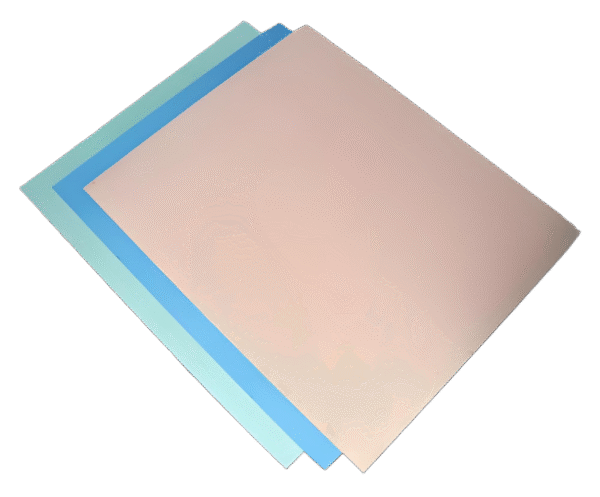

Aluminum copper clad laminate
Features
◆ Compliance with ROHS Reach requirements
◆ Good machinability, Good dimensional stability
◆ Electromagnetic shielding and good cost performance
Applications
◆ LED Field
Standard size
◆ Alu material：1060# 3003# 5052#
◆ Thickness: 0.6-1.6mm
◆ Copper foil: 12um,15um,18um,25um,35um
◆ Sheet Size: 37×49”,41×49”,43×49”
| Item | Test Condition | Specification Value | Unit | 1.0W | 1.5W | 2.0W | 3.0W |
| Thermal Stress | IPC-TM-650 2.4.13.1 | 288℃.S | Sec | ≥180 | ≥180 | ≥180 | ≥180 |
| Peel Strength | IPC-TM-650 2.4.8.1 | / | N/㎝ | ≥1.03 | ≥1.03 | ≥1.03 | ≥1.03 |
| Breakdown Voltage | D48/50+D0.5/23 IPC-TM-650 2.5.6 | ≥1.5 | KV/DC | ≥3.5 | ≥3.5 | ≥3.5 | ≥3.5 |
| Thermal Conductivity | ASTM D 5470 | C-96/25/65 | W/(m∙K） | ≥1.0 | ≥1.3 | ≥1.7 | ≥2.5 |
| Glass Transition Temperature | IPC-TM-650 2.4.25 | DSC | ℃ | 130 | 130 | 130 | 130 |
| CTI | ASTM D 3638 | / | V | 600 | 600 | 600 | 600 |
| Flammability | E24/23 UL94 | FV-0 | — | V-0 | V-0 | V-0 | V-0 |
| Surface Resistivity | IPC-TM-650 2.5.17.1 | E24/125 | MΩ | ≥10⁶ | ≥10⁶ | ≥10⁶ | ≥10⁶ |
| Volume Resistivity | IPC-TM-650 2.5.17.1 | E24/125 | MΩ-cm | ≥10⁶ | ≥10⁶ | ≥10⁶ | ≥10⁶ |
| Dielectric Constant | IPC-TM-650 2.5.5.2 | C40/23/50 | 1MHz Max | 1.83 | 1.83 | 1.83 | 1.83 |
| Moisture Absorption | IPC-TM-650 2.6.2.1 | D24/23 | % | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 |
